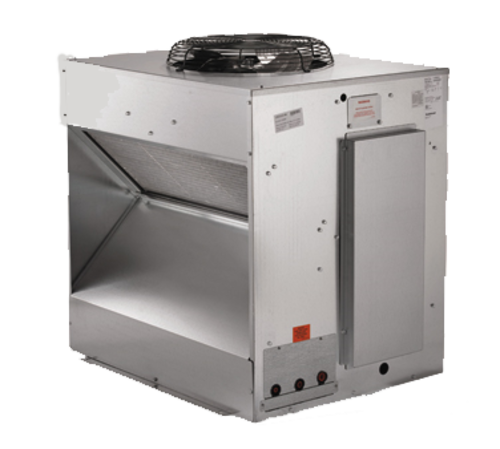

Scotsman ECC1410-32 Remote Condenser Unit

The Scotsman ECC1410-32 is a remote condenser unit designed for use with Prodigy Plus Eclipse modular ice heads. It features a one-piece design that facilitates easier installation and service. The unit is built to operate efficiently across a wide range of outdoor temperatures, from -20°F to 120°F, and is engineered to dissipate heat away from the ice machine, minimizing the air conditioning load and ensuring quiet operation in dining and working environments.

Specifications

Model: ECC1410-32
Weight: 310.00 lbs
Dimensions: 39.00 x 40.00 x 32.00 in
Electrical: 208-230/60/1
24-hour ice production: 827 lbs at 90° Air/70° Water

-20°F to 120°F Operating Temperature Range

1030 lbs Ice Production at 70° Air/50° Water

Applications

Supporting ice production in large-scale restaurant kitchens
Maintaining ice supply in hotel and hospitality settings
Providing ice for beverage service in bars and cafes
Ensuring ice availability in catering operations

Certifications

cULus Listed

This product has been certified by UL to meet applicable safety standards required for use in the United States and Canada.

From The Manufacturer

Remote Condensing unit for Prodigy® Eclipse® Ice Maker, up to 1425 lb/24 hours production, 208-230/60/1-ph, 14.5 amps, cULus
