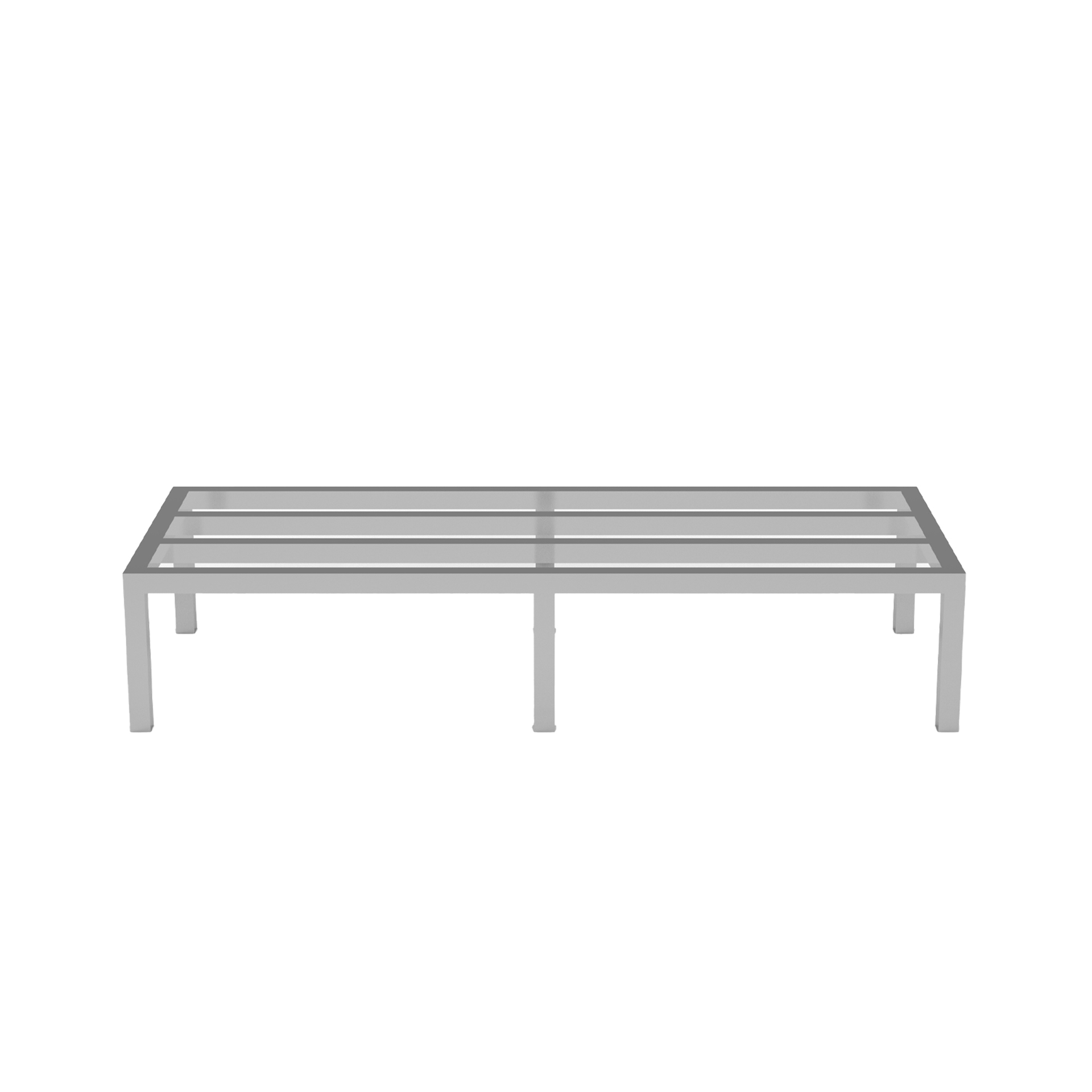

Atosa USA SDA206012 Aluminum Dunnage Rack, 60"W x 20"D x 12"H, 6 Legs, Welded, NSF
Atosa USA SDA206012 — 60" Welded Aluminum Dunnage Rack, 12" High
The largest and tallest rack in Atosa's aluminum dunnage line: five feet of platform, 12 inches off the floor, carried on six legs. Built from heavy-duty welded 1-1/2" aluminum tubing — open so air moves underneath, aluminum so it never rusts in a wet cooler, and welded rather than bolted so a five-foot span does not work loose.
Key Features of the SDA206012
Dunnage racks live on wet floors under heavy loads and get hit by every mop, hose and hand truck in the building. Material, height and joint construction are the whole story.
Six Legs on a Five-Foot Span
Atosa steps every SDA model 60" and longer up to six legs. The extra center pair is what keeps a five-foot platform from flexing under a full stack of cases.
Aluminum, Not Steel
Aluminum does not rust. In a walk-in cooler with condensate on the floor, or a dry store that gets hosed down, that is the difference between a rack that lasts and one that stains the floor orange.
Welded, Not Bolted
Heavy-duty welded construction throughout. A bolted rack loosens under repeated loading and vibration; a welded frame stays square for the life of the rack.
12" Height, Not 8"
Four extra inches of clearance over the 8" series. It matters where floors are squeegeed hard, where a pallet jack needs to get under, or where deeper product needs to sit fully clear of the floor.
Vented, Open Construction
The open platform lets air circulate around and beneath stored product — important for cooler airflow and for keeping dry goods off a floor that is regularly wet.
NSF Certified
NSF certified for commercial foodservice storage — the listing health inspectors look for when checking that nothing is stored directly on the floor.
Ordering note: this rack is priced by each but packed six per case, and the case cannot be broken — so the minimum order is six racks. Six 60-inch racks is 30 linear feet of elevated storage, which is roughly a full walk-in wall.
Ideal Applications
Anywhere the health code says product cannot touch the floor — and where a five-foot run beats stitching together shorter racks.

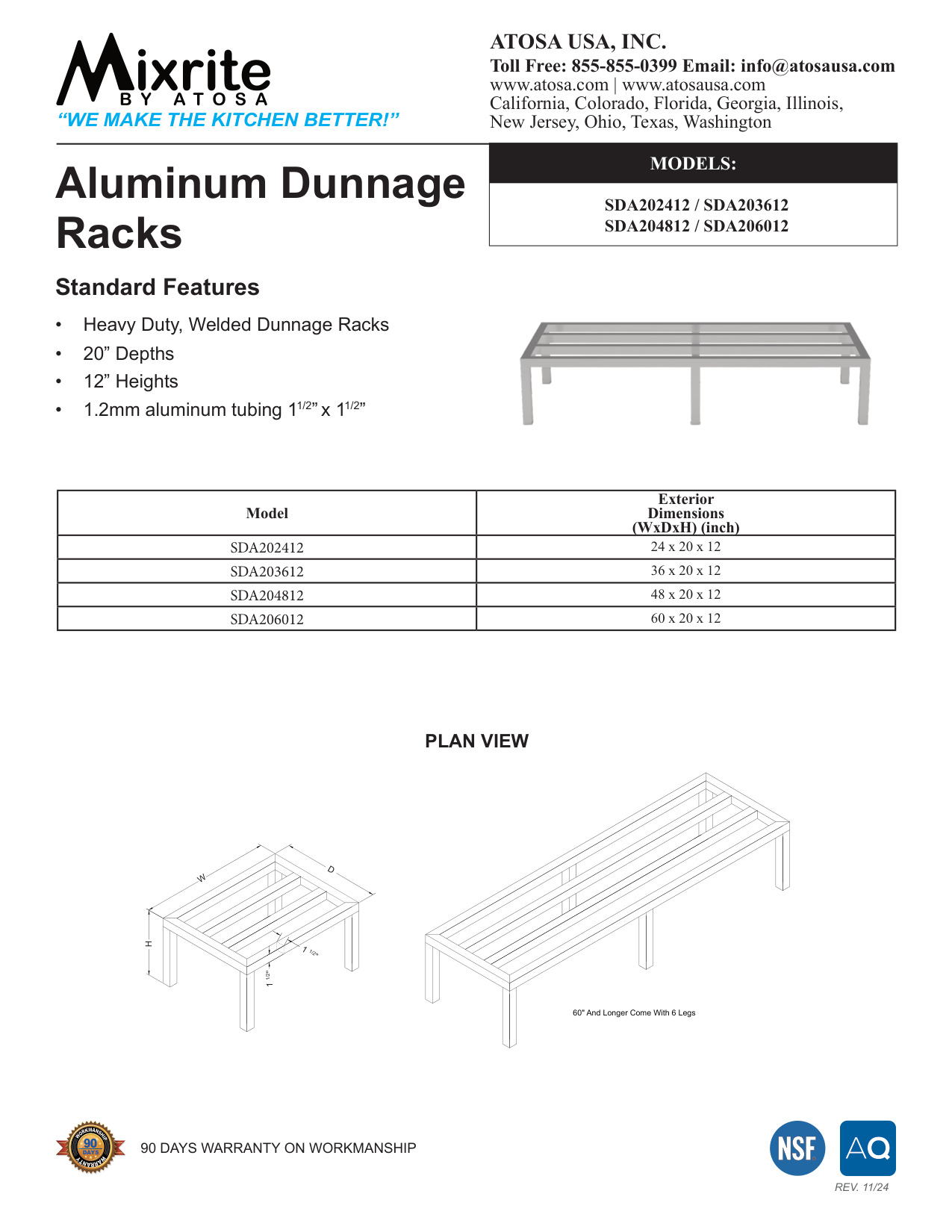

SDA206012 Specifications
| Model | SDA206012 |
|---|---|
| Brand | Atosa USA |
| Type | Vented aluminum dunnage rack |
| Exterior Dimensions (W x D x H) | 60" x 20" x 12" |
| Material | Aluminum, heavy duty welded construction |
| Tubing | 1-1/2" x 1-1/2" aluminum tube, 1.2 mm wall |
| Legs | 6 (standard on models 60" and longer) |
| Sanitation | NSF certified |
| Packaging | Priced by each, packed 6 per case, case cannot be broken |
| Warranty | 90 day workmanship warranty |
The 12" High SDA Dunnage Rack Line
| SDA202412 | 24" x 20" x 12" |
|---|---|
| SDA203612 | 36" x 20" x 12" |
| SDA204812 | 48" x 20" x 12" |
| SDA206012 | 60" x 20" x 12" — ships with 6 legs |
Frequently Asked Questions
Why does this rack have six legs?
Atosa fits six legs on every SDA model 60" and longer. On a five-foot platform, the extra center pair is what stops the frame flexing under a heavy, fully loaded stack.
Can I buy just one rack?
No. The SDA206012 is priced by each but packed six per case, and the case cannot be broken, so six is the minimum order quantity.
What is the difference between the 8" and 12" series?
Only the height. The 8" series (SDA202408 through SDA206008) lifts product eight inches off the floor; this 12" series lifts it a full foot, which suits docks, heavily washed floors and deeper product.
Why aluminum instead of steel?
Dunnage racks sit on floors that are wet with condensate or wash water. Aluminum does not rust, so it holds up in a walk-in cooler or a hosed-down storeroom far better than a painted or plated steel rack.
Does it need assembly?
No. The frame is welded, not bolted together, so it arrives as a finished rack rather than a kit of parts.
Is it NSF certified?
Yes. It is NSF certified for commercial foodservice use, which is what health inspectors look for on storage racks.
| Brand | Atosa USA |
-
Price Match Request
Find better pricing? Just send it to us and ask for a quote! -
Financing Available, Flexible payment plans to fit your budget. Click here to explore your options
-
Guaranteed Safe Checkout
![[Price Match Guarantee] Price Match Guarantee](/web/image/dr.website.content/5/image/%5BPrice%20Match%20Guarantee%5D%20Price%20Match%20Guarantee?unique=3dc2115){kind=small}
| SKU | SDA206012 |
| Brand | Atosa USA |
| Weight | 11.83 lbs |
| Dimensions (HxWxD) | 17.00 x 65.00 x 24.00 inches |
| Height | 17.00 |
| Width | 65.00 |
| Depth | 24.00 |
| Material | aluminum |
| Width (side - side) | 60 - 72"W |
| Height | 12" |
| Depth (front - back) | 20" |
| Package | 12 pieces in package |
|
