Blue Air BLMT72-D2R-HC 72" Mega Top Prep Table with 2 Doors & 2 Right-Side Drawers
Blue Air BLMT72-D2R-HC — 72" Three-Section Mega Top with Doors and Drawers
Blue Air's BLMT72-D2R-HC is a three-section, 72-3/8" mega top sandwich and salad prep table that splits its base between two self-closing swing doors on the left and two pan drawers on the right. That hybrid layout gives a line cook fast drawer access to the day's working product while still leaving 20.2 cu. ft. of shelved cabinet space for cases, tubs and backup stock. Above it, a 30-pan mega top rail carries the widest topping spread in the BLMT lineup, all held between 33 °F and 39 °F by a rear-mounted R-290 system.
Key Features of the BLMT72-D2R-HC
The D2R configuration exists for kitchens that need two kinds of cold storage at once — quick-grab pans and bulk case storage — without adding a second piece of equipment to the line.
30-Pan Mega Top in Three Rows
The rail is laid out ten pans across in three rows, for thirty 1/6 size pans supplied with the unit. An insulated pan cover with a stainless steel divider keeps spillage out of the cabinet below.
Two Drawers on the Right
The right-hand section carries two drawers sized for 6" deep pans, so the product a cook touches every few minutes pulls straight out at waist height instead of hiding behind a door.
Two Door Sections with Adjustable Wire Shelving
The left side holds two self-closing swing doors over two epoxy-coated wire shelves whose height adjusts — the practical way to store full cases, 6-gallon tubs and taller containers that will not fit a drawer.
1/4 HP R-290 System on a Sliding Base
A self-contained rear-mounted condensing unit runs on R-290 hydrocarbon refrigerant and slides out for service, drawing only 5.4 amps on a standard 115 V circuit.
Air Guard and Hot Gas Frame Heating
An air guard on the rear wall directs forced cold air through the enclosed pan area, while an innovative hot gas frame heating system cuts condensation around the door and drawer openings instead of burning watts on an electric heater.
Digital Monitoring with Open Alarm
A self-diagnostic digital temperature control and monitor system shows cabinet temperature on the display, delays the evaporator fan automatically to limit frost, and sounds a visual and audible alarm if a door has not shut fully.
Planning the cutout and clearances: the published 33-11/64" depth excludes 2-3/8" for the cutting board and 2-7/32" for the rear spacers, and the 39-11/64" height excludes 5" for the casters. Because the condensing unit is rear-mounted and slides out, keep the back of the unit reachable for service.
Ideal Applications
The door-plus-drawer split makes this the model to pick when one station has to cover both the build line and the day's backup inventory.

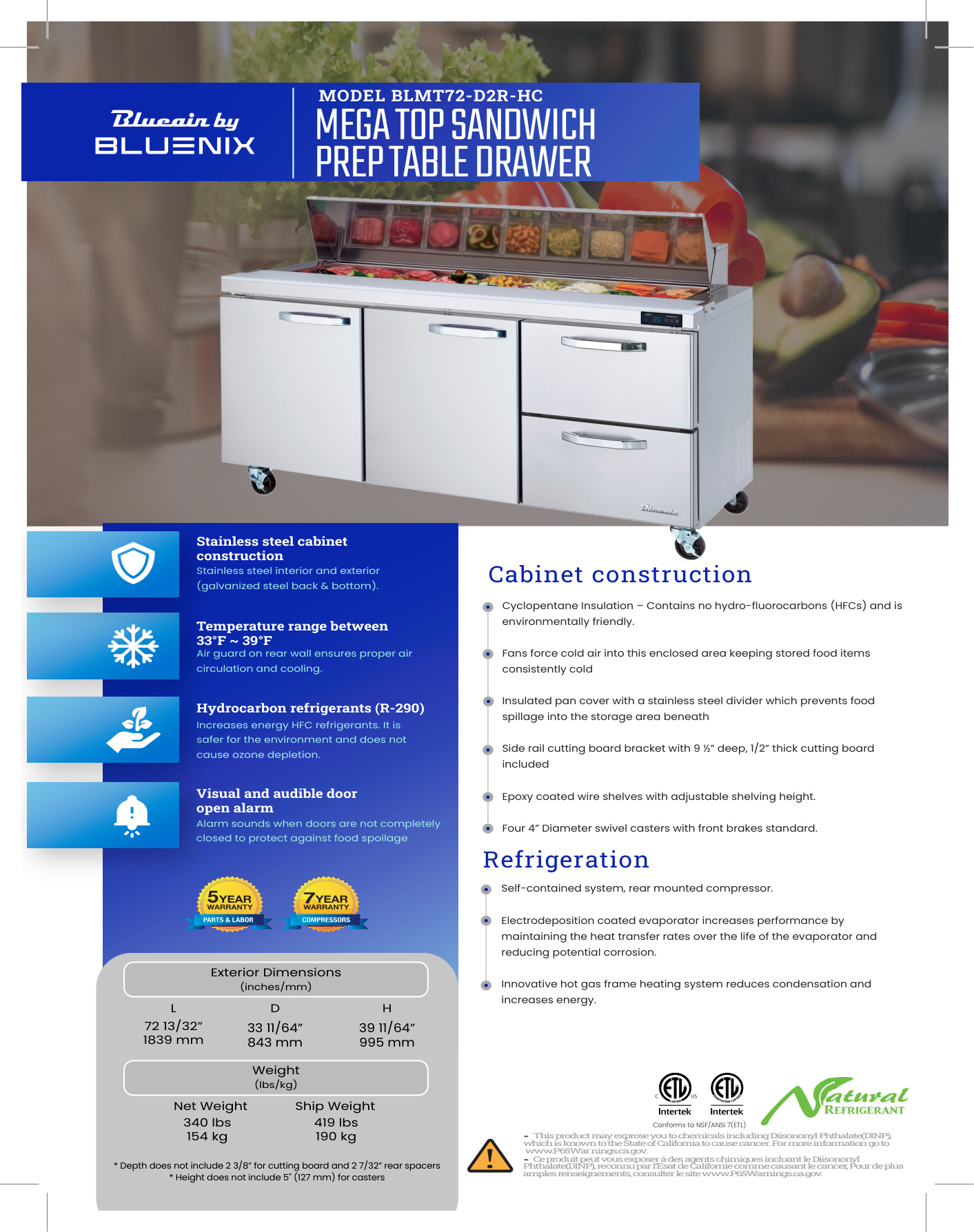

BLMT72-D2R-HC Specifications
| Model | BLMT72-D2R-HC |
|---|---|
| Type | Mega top sandwich / salad prep table, three-section |
| Refrigerated Capacity | 20.2 cu. ft. |
| Pan Capacity (Top) | (30) 1/6 size pans, included |
| Doors | (2) self-closing swing doors, left side, close at 90° or less |
| Drawers | (2), right side, accommodate 6" deep pans |
| Shelving | (2) adjustable epoxy-coated wire shelves |
| Temperature Range | 33 °F – 39 °F |
| Exterior Width | 72-3/8" |
| Exterior Depth | 33-11/64" (843 mm), excl. cutting board & rear spacers |
| Exterior Height | 39-11/64" (995 mm), excl. casters |
| Cutting Board | 9-1/2" deep × 1/2" thick, side rail bracket included |
| Refrigeration System | Self-contained, rear-mounted, easy-sliding condensing unit |
| Refrigerant | R-290 hydrocarbon |
| Horsepower | 1/4 HP |
| Electrical | 115 V / 60 Hz / 1 phase, 5.4 amps |
| Plug / Cord | NEMA 5-15P on a 9.8 ft (3 m) flexible cord |
| Insulation | Cyclopentane, HFC-free |
| Evaporator | Electrodeposition coated for corrosion resistance |
| Construction | Stainless steel interior & exterior, galvanized steel back & bottom |
| Casters | (4) 4" swivel, front two braked (2.5" casters optional) |
| Net Weight | 340 lbs (154 kg) |
| Shipping Weight | 419 lbs (190 kg) |
| Certifications | cETLus, ETL-Sanitation, conforms to NSF/ANSI 7 |
Frequently Asked Questions
What does the D2R in BLMT72-D2R-HC actually mean?
It identifies the base configuration: two drawers positioned on the right-hand section, with the remaining two sections fitted as self-closing swing doors on the left. Blue Air uses the same BLMT72 cabinet for several door and drawer combinations, so the suffix is what tells you which one you are ordering.
How many food pans does this 72" mega top hold?
Thirty 1/6 size pans, arranged ten across in three rows, and they are included with the unit rather than sold separately. That is six more pans than the 60" BLMT60 mega top, which is the main reason operators step up to this width.
Can I store full cases in the BLMT72-D2R-HC?
Yes — that is the point of the two door sections. Behind the swing doors are two epoxy-coated wire shelves with adjustable height, giving you 20.2 cu. ft. of cabinet volume for cases, buckets and containers too tall for a 6" drawer pan.
What kind of electrical service does it need?
Standard 115 V, 60 Hz single-phase power at 5.4 amps. The unit arrives with a 9.8 ft cord and a NEMA 5-15P plug, so it drops onto an ordinary 15-amp receptacle with no dedicated high-voltage circuit or hard wiring.
How does the unit keep condensation off the frame?
Instead of an electric anti-sweat heater, Blue Air routes hot refrigerant gas through the cabinet frame. That hot gas frame heating system warms the door and drawer openings enough to stop condensation while reusing heat the system already produced.
How much does the BLMT72-D2R-HC weigh for delivery?
Net weight is 340 lbs and shipping weight is 419 lbs on the pallet. Plan for a liftgate or dock and a second person; once uncrated, the four 4" swivel casters make it easy to roll into position.
