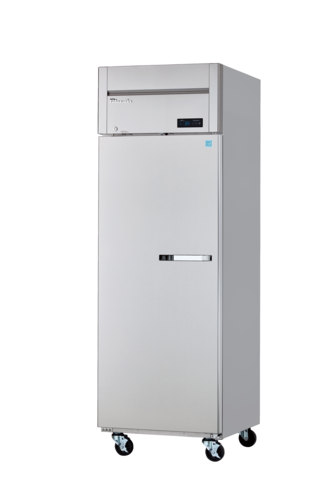

Blue Air BSF23T-L-HC 23 cu. ft. Top-Mount Reach-In Freezer, Left-Hinged Solid Door
Blue Air BSF23T-L-HC — 23 cu. ft. Top-Mount Single-Door Reach-In Freezer
The Blue Air Commercial Refrigeration BSF23T-L-HC puts the condensing unit on top of the cabinet instead of underneath it — the reason to choose it over the bottom-mount BSF23 is a compressor that never breathes floor-level flour, grease and mop water, which is exactly what shortens a freezer's life on a busy line. Behind one left-hinged solid door sit 23 cu. ft. of stainless steel storage held between -10 °F and 5 °F, with four adjustable epoxy-coated wire shelves and a self-diagnostic digital control that displays the actual box temperature. The 1/2 HP R-290 system is ENERGY STAR rated, and a visual and audible alarm sounds the moment the door is left off its seal.
Key Features of the BSF23T-L-HC
The "T" in the model number is the whole argument for this freezer, but it is not the only thing Blue Air changed for sub-zero duty.
Compressor Overhead, Out of the Dirt
A top-mounted self-contained system pulls its condenser air from above the work zone rather than from ankle height, so the coil stays clear of the flour, grease mist and mop splash that clog a bottom-mount freezer's condenser. The condensing unit sits on an easy-sliding base and a rear-mounted condensation pan handles meltwater, so routine cleaning does not mean pulling a loaded 251 lb cabinet away from the wall.
-10 °F to 5 °F, Held and Displayed
This is a true freezer, not a convertible box: the operating range runs from -10 °F up to 5 °F, cold enough to hold ice cream, portioned proteins and par-baked product hard. A self-diagnostic digital temperature control and monitor system runs the cabinet and shows the reading on a digital display, and defrost is initiated manually from the same control so a cycle never fires in the middle of service.
Left-Hinged Door That Closes Itself and Holds Open at 110°
The "-L-" specifies a door hinged on the left, which suits a freezer set against a left-hand wall or at the end of a run. It self-closes from 90° or less, then latches into an automatic hold-open at 110° when someone needs both hands to load a sheet pan rack. Pressure relievers built into the door eliminate the vacuum that makes a freezer door feel welded shut a minute after closing, and the Ni-Cr plated all-metal handle carries a lifetime guarantee.
Visual and Audible Door-Open Alarm
A door left ajar on a freezer costs far more than one left ajar on a cooler, so the BSF23T-L-HC sounds and shows an alarm whenever the door is not completely closed. Combined with the standard door lock and a durable, easily replaced gasket, it is the cheapest protection there is against arriving in the morning to a box full of thawed inventory.
Cyclopentane Insulation and a Coated Evaporator
The cabinet is insulated with cyclopentane, which contains no hydrofluorocarbons, and the walls are stainless steel inside and out with galvanized steel at the back and bottom. The evaporator is electrodeposition coated to hold its heat-transfer rate over the life of the unit rather than losing capacity to corrosion, and a hot gas frame heating system keeps condensation off the door frame without an electric heater wire.
Four 4" Swivel Casters, Two Braked
The freezer rolls on four 4" diameter swivel casters with brakes on the front pair, so it can be moved out for a deep clean behind the line and locked back into position. Rounded corners on the cabinet reduce the chance of a cut when squeezing past in a tight aisle, and 2.5" casters or 6" adjustable legs are available if the standard height does not suit the room.
Before you order — height and hinge: the BSF23T-L-HC measures 26-13/16" wide by 33-11/32" deep and stands 81-31/32" tall, and because the condensing unit is on the roof you also need clear air space above it — a low soffit or overhead shelf directly over the cabinet will choke the condenser. The "-L-" is the hinge call: the door is hinged left and swings from the right. Net weight is 251 lbs, ship weight 282 lbs, and the cord is 9.8 ft long.
Ideal Applications
A single-section top-mount freezer earns its place where floor dirt and airborne flour would eat a bottom-mount unit alive.
BSF23T-L-HC Specifications
| Model | BSF23T-L-HC |
|---|---|
| Type | One-section top-mount reach-in freezer |
| Capacity | 23 cu. ft. |
| Temperature Range | -10 °F ~ 5 °F |
| Doors | (1) full-size solid, left hinged, self-closing, locking |
| Door Features | Self-close at 90° or less, automatic hold open at 110°, pressure relievers, replaceable gasket |
| Door Handle | Heavy-duty all metal, Ni-Cr plated, lifetime guaranteed |
| Shelves | (4) adjustable epoxy-coated wire |
| Controls | Self-diagnostic digital temperature control and monitor with digital display |
| Defrost | Manual, initiated from the digital control |
| Alarm | Visual and audible door-open alarm |
| Refrigeration System | Self-contained, top mounted, easy sliding condensing unit |
| Refrigerant | R-290 hydrocarbon |
| Evaporator | Electrodeposition coated |
| Air Circulation | Air guard on rear wall |
| Condensate | Rear-mounted condensation pan |
| Insulation | Cyclopentane, HFC free |
| Construction | Stainless steel interior and exterior; galvanized steel back and bottom |
| Lighting | LED interior lighting |
| Exterior Dimensions (W x D x H) | 26-13/16" x 33-11/32" x 81-31/32" (681 x 847 x 2082 mm) |
| Horsepower | 1/2 HP |
| Electrical | 115 V / 60 Hz / 1 phase, 4.9 amps |
| Plug / Cord | NEMA 5-15P, 9.8 ft (3 m) flexible three-wire cord with molded plug |
| Casters | (4) 4" swivel, front two braked (standard) |
| Optional Accessories | 2.5" casters, 6" adjustable legs, additional shelves |
| Net Weight | 251 lbs (114 kg) |
| Shipping Weight | 282 lbs (128 kg) |
| Certifications | cETLus, ETL-Sanitation, conforms to NSF/ANSI 7, ENERGY STAR |
Frequently Asked Questions
What does the "T" in BSF23T-L-HC mean, and why choose it?
The T designates a top-mounted condensing unit. Blue Air builds the same 23 cu. ft. freezer cabinet with the compressor underneath as the BSF23-L-HC; the top-mount version puts the condenser coil above the work zone where it draws cleaner air. In a bakery, pizzeria or any kitchen with airborne flour or heavy floor dust, that alone can be the difference between an annual coil clean and a service call.
How cold does the BSF23T-L-HC actually get?
Its operating range is -10 °F to 5 °F, which is genuine freezer duty rather than the 33 °F to 39 °F of the matching BSR23T refrigerator. That range holds ice cream at a scoopable but firm consistency and keeps proteins, par-baked dough and frozen vegetables solid. The self-diagnostic digital control shows the current cabinet temperature so you are not guessing from a dial position.
Does this freezer defrost by itself?
No — defrost on the BSF23T-L-HC is manual, initiated from the digital control panel. That is a deliberate choice on a low-temperature box: you decide when the cycle runs rather than having an automatic timer add heat to the cabinet during a busy service. Combine it with the electrodeposition coated evaporator and the rear-mounted condensation pan and frost management stays a scheduled task instead of a surprise.
Which way does the door swing, and can it be changed?
The "-L-" in the model number means the door is hinged on the left and opens from the right, so the freezer suits a position against a left-hand wall or at the right end of an equipment run. This is a factory-specified configuration, not a field-reversible one, so confirm your aisle layout before ordering — Blue Air builds the same cabinet with a right-hand hinge under a different model suffix.
What electrical service does it need?
A standard 115 V / 60 Hz single-phase receptacle. The 1/2 HP compressor draws 4.9 amps and the freezer ships with a 9.8 ft flexible three-wire cord and a molded NEMA 5-15P plug, so no dedicated high-amperage circuit or hard wiring is involved. The unit is ENERGY STAR rated, which matters if you are pricing utility rebates.
Will the BSF23T-L-HC fit through a standard doorway?
The cabinet is 26-13/16" wide and 33-11/32" deep, so the footprint clears a 30" door opening comfortably. Height is the constraint: 81-31/32" overall on its standard 4" casters, and the top-mounted compressor needs breathing room above that once it is in place. Measure ceiling height, soffits and any elevator car on the delivery route before the 282 lb crate arrives.
