Comstock Castle CP-CO-ECT-HS-120 23 Inch Half Size Electric Countertop Convection Oven 4 Racks 1.6 kW 120V NEMA 5-15P

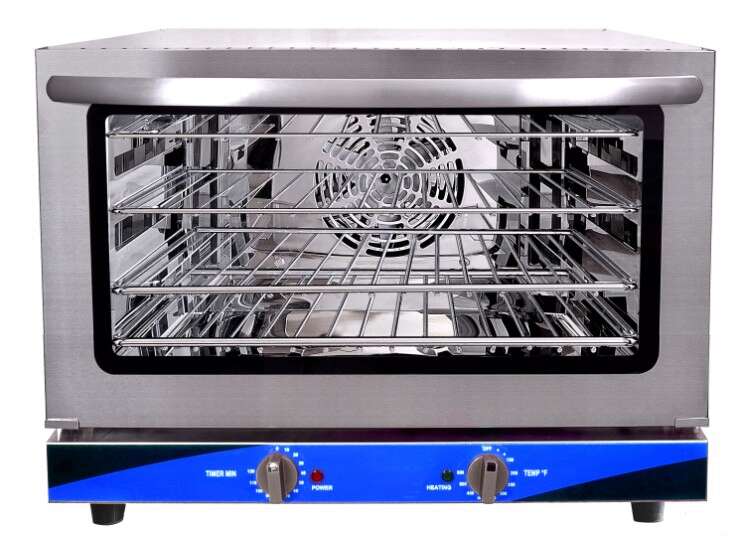

Comstock Castle CP-CO-ECT-HS-120 — Half-Size Electric Countertop Convection Oven, 120 V
The Comstock Castle CP-CO-ECT-HS-120 is a half-size electric convection oven that runs on an ordinary 120 V, 15 A circuit, so a cafe, concession stand, or small kitchen can add real convection baking without a dedicated hard-wired line. Inside the 23" x 22" x 16" stainless steel cabinet, four chrome-plated 18" x 13" wire racks sit 1-3/4" apart in a 1.5 cu ft chamber, and a durable fan circulates heated air evenly for consistent results on small batches of baked goods, pizzas, hors d'oeuvres, and snack foods. Thermostatic heat settings run from 150°F to 500°F with fast preheat times, a 120-minute adjustable timer tracks each batch, and a double-pane window with vented door framing keeps the handle and control panel cool to the touch. The oven draws 1,600 W (13.3 A) through a 6-foot cord with a NEMA 5-15P plug and is cETLus design certified and ETL Sanitation listed to ANSI/NSF 4.
Key Features of the CP-CO-ECT-HS-120
The CP-CO-ECT-HS-120 is built as a plug-in oven for operations that need commercial convection results on a countertop and a standard receptacle.
Even-Heat Convection Fan
A durable fan circulates heated air throughout the 1.5 cu ft cooking chamber for consistent, even browning across all four rack positions, ideal for small batches of pastries, pizzas, and appetizers.
150°F to 500°F Thermostat
Heat settings from 150°F for holding and proofing up to 500°F for pizza and roasting, with fast preheat times so the oven is ready shortly after switch-on.
120-Minute Adjustable Timer
A 120-minute mechanical timer lets the operator set a full two-hour bake or a quick reheat and walk away, keeping counter-service staff free for customers.
Four Chrome-Plated Wire Racks
Four 18" wide x 13" deep chrome-plated wire racks are included, spaced 1-3/4" apart, so half-size sheet pans of cookies, rolls, or wings can bake four at a time.
Double-Pane Window, Vented Frame
A double-pane glass window lets staff check product without opening the door, and vented door framing keeps the door handle and control panel cool to the touch through a long shift.
Plug-In 120 V Operation
At 1,600 W and 13.3 A the oven runs on a standard NEMA 5-15 receptacle through its 6-foot cord, and 1" footers lift the stainless body off the counter to reduce heat transfer to the work surface.
Electrical note: The CP-CO-ECT-HS-120 requires a dedicated 120 V, 60 Hz, single-phase circuit rated for at least 15 A; it draws 13.3 A (1,600 W) and plugs into a grounded NEMA 5-15R receptacle with its 6-foot cord. Do not run it on a shared circuit with other high-draw appliances, and allow clearance around the cabinet for the vented door frame and rear ventilation.
Ideal Applications
A 120 V half-size convection oven fits anywhere a standard outlet and 23" of counter are available, which makes it a common first oven for small food businesses.
CP-CO-ECT-HS-120 Specifications
| Model | Comstock Castle CP-CO-ECT-HS-120 |
|---|---|
| Type | Electric countertop convection oven, half-size |
| Oven Capacity | 1.5 cu ft |
| Racks | (4) chrome-plated wire racks, 18" W x 13" D |
| Rack Spacing | 1-3/4" between rack positions |
| Temperature Range | 150°F to 500°F, thermostatic |
| Timer | 120-minute adjustable |
| Airflow | Fan-circulated heated air throughout the cooking chamber |
| Door | Double-pane glass window, vented door framing, cool-touch handle |
| Construction | Stainless steel |
| Footers | 1" footers for insulating air gap under the oven |
| Power | 1,600 W (1.6 kW) |
| Electrical | 120 V, 60 Hz, single-phase; 13.3 A |
| Plug / Cord | NEMA 5-15P; 6' power cord |
| Exterior Dimensions | 23" W x 22" D x 16" H |
| Package Dimensions / Weight | 26" x 26" x 18"; 60 lbs |
| Certifications | cETLus design certified; ETL Sanitation listed (ANSI/NSF 4) |
| Warranty | 1 year parts & labor (commercial installations) |
Frequently Asked Questions
What electrical connection does the Comstock Castle CP-CO-ECT-HS-120 need?
It runs on 120 V, 60 Hz, single-phase power and draws 1,600 W (13.3 A). It comes with a 6-foot cord and a NEMA 5-15P plug for a standard grounded 15 A receptacle; a dedicated circuit is recommended.
How many pans fit in the CP-CO-ECT-HS-120?
Four chrome-plated 18" x 13" wire racks are included with 1-3/4" between positions, so the oven holds up to four half-size sheet pans at once in its 1.5 cu ft chamber.
What is the temperature range of the CP-CO-ECT-HS-120?
The thermostat adjusts from 150°F to 500°F, and the oven is designed for fast preheat times. A 120-minute adjustable timer controls bake time.
How big is the CP-CO-ECT-HS-120 and how much does it weigh?
The cabinet measures 23" wide by 22" deep by 16" high and sits on 1" footers. It ships in a 26" x 26" x 18" package at 60 lbs.
Is the CP-CO-ECT-HS-120 NSF certified?
It is cETLus design certified and ETL Sanitation listed, complying with ANSI/NSF 4 standards for commercial cooking equipment.
Can the CP-CO-ECT-HS-120 be used in a food truck?
Yes, provided the truck has a 120 V circuit rated for at least 15 A. Comstock Castle limits the warranty on food truck, trailer, and outdoor installations to 60 days labor and 120 days parts.
| Brand | Comstock Castle |
-
Price Match Request
Find better pricing? Just send it to us and ask for a quote! -
Financing Available, Flexible payment plans to fit your budget. Click here to explore your options
-
Guaranteed Safe Checkout
![[Price Match Guarantee] Price Match Guarantee](/web/image/dr.website.content/5/image/%5BPrice%20Match%20Guarantee%5D%20Price%20Match%20Guarantee?unique=3dc2115){kind=small}
| SKU | CP-CO-ECT-HS-120 |
| Brand | Comstock Castle |
| Weight | 60.00 lbs |
| Dimensions (HxWxD) | 16.00 x 23.00 x 22.00 inches |
| Height | 16.00 |
| Width | 23.00 |
| Depth | 22.00 |
| kW (per deck) | 1.0 - 5.99 kW |
| Exterior Finish | all stainless steel exterior |
| Size | half size |
| Capacity per Compartment | 4 pan capacity, per compartment |
| Type | standard |
| Base | feet |
| Interior Finish | stainless steel interior |
| Control Type | manual controls |
| Deck Qty | 1 deck |
|
