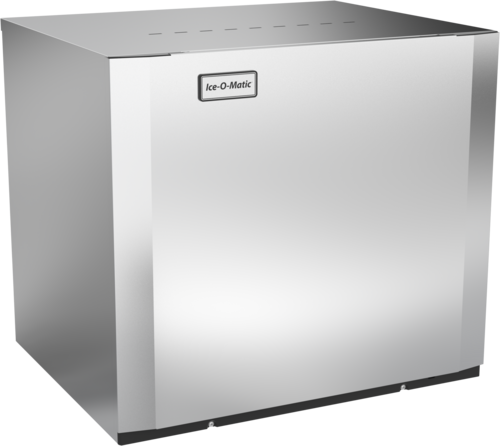

Elevation Series™ CIM0836FR49 Ice Maker 800 lb Daily Production Capacity
Ice-O-Matic CIM0836FR49 Ice Maker, Cube-Style
The Ice-O-Matic CIM0836FR49 is a modular cube ice maker from the Elevation Series™. It is designed for remote condenser cooling and is constructed with corrosion-resistant and fingerprint-proof aluminum. The ice maker features a front-facing evaporator for easy cleaning and dishwasher-safe plastic components that can withstand temperatures up to 180°F. It is capable of producing full-size ice cubes and includes a Harvest Assist feature to maintain consistent ice production.
Specifications
- Dimensions: 30.25 x 26.90 x 24.25 in
- Weight: 215.00 lbs
- Ice Production: 850 lbs/24 hours at 70°F air/50°F water
- Voltage: 208-230/60/1
- Water Usage: 17.5 gallons per 100 lbs of ice
- Refrigerant: R449A
Applications
- Producing ice for beverage service in restaurants
- Supplying ice for food preservation in commercial kitchens
- Providing ice for catering events and banquet halls
Certifications
This product has been certified by UL to meet applicable safety standards required for use in the United States and Canada.
This product complies with the standards imposed by Conformance European (CE).
This item has been certified by NSF International to meet applicable product standards on public safety, health, or the environment.

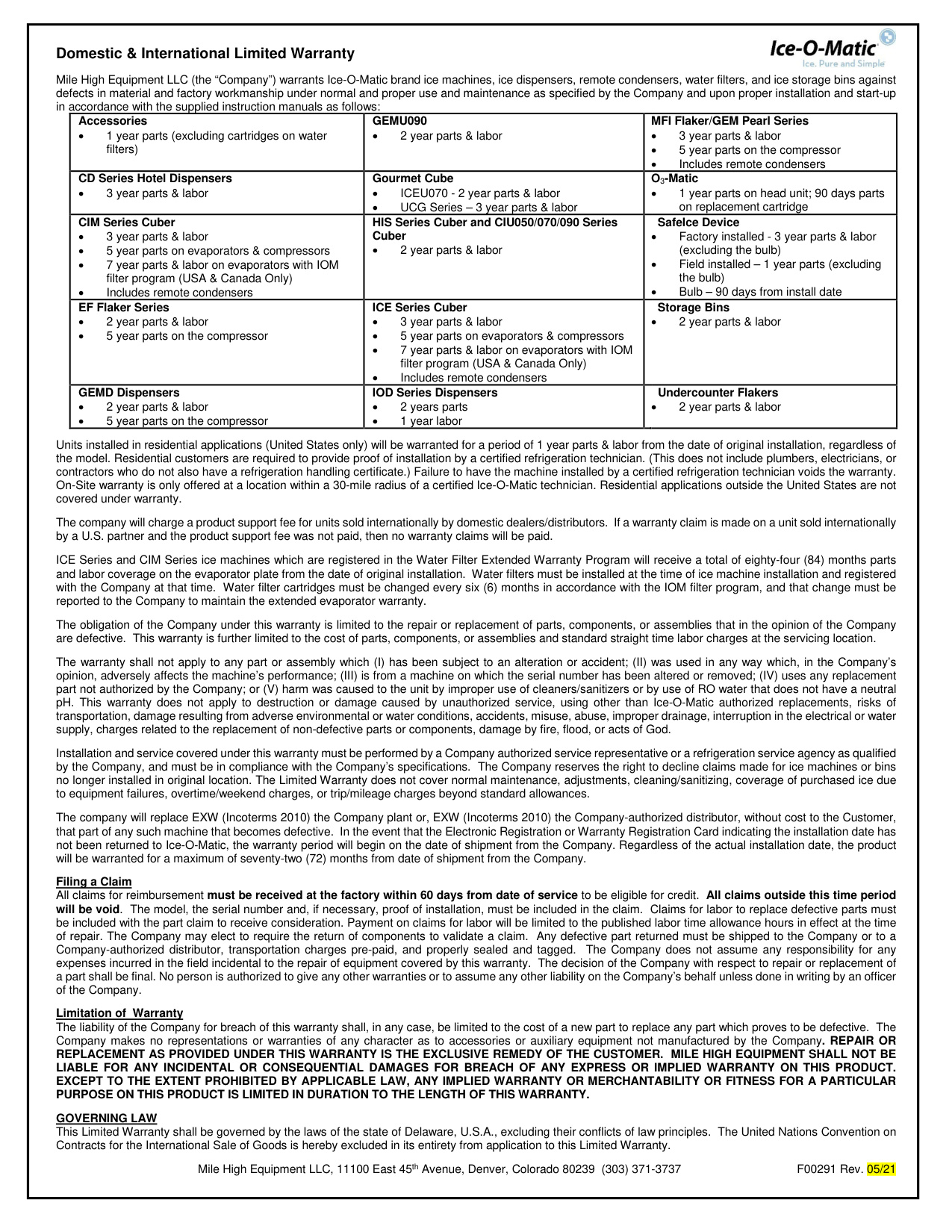

Warranty
Ice Maker: 3 years parts and labor. Evaporator and Compressor: 5 years parts. Evaporator: 7 Years Parts and Labor (if enrolled in the filter program).
From The Manufacturer
- Elevation Series™ Modular Cube Ice Maker
- remote condenser cooled
- 30" W
- approximately 850 lb production/24 hours at 70°/50° (759 lb at 90°/70°)
- full-size cubes
- LED status display
- one touch sanitize/descaling controls
- dishwasher safe food zone components
- R449 refrigerant
- cULus
- NSF
- CE
| Brand | Ice-O-Matic |
| Brand: Ice-O-Matic |
-
Financing Available, Flexible payment plans to fit your budget. Click here to explore your options
![[Financing Available] Financing Available](/web/image/dr.website.content/5/image/%5BFinancing%20Available%5D%20Financing%20Available?unique=078fc30){kind=small}
Guaranteed Safe Checkout
Call for Help
Resources
| SKU | CIM0836FR49 |
| Brand | Ice-O-Matic |
| Weight | 215.00 lbs |
| Dimensions (HxWxD) | 26.90 x 30.25 x 24.25 inches |
| Height | 26.90 |
| Width | 30.25 |
| Depth | 24.25 |
| Production per 24 hr | 901 - 1000 lb = 409 - 454 kg |
| Ice Type | full size / dice cubes |
| Width (side - side) | 30 - 39" wide |
| Condenser Type | air-cooled |
| Refrigeration | remote (refrigeration not included) |
|
